DYNELLO® fastwinder

Lightweight all-round strap winder for a cordless drill. Made in the original and protected DYNELLO® design including the innovative strap-steer for excellent control of the lashing strap during winding. Use the strap winder with a cordless drill (Ø10 mm shaft). Recommended drill maximum winding speed 400 RPM (!)

Ideal for tradies and truck drivers that want an all-round strap winder.

Detailed description

● Innovative and solid design:
⎯ Simple and proven innovative design that provides excellent control of the strap during rewinding
⎯ Use for several widths of straps from 10 - 50 mm
⎯ Ideal strap winder for 0 – 50 mm wide straps, maximum length 20 m

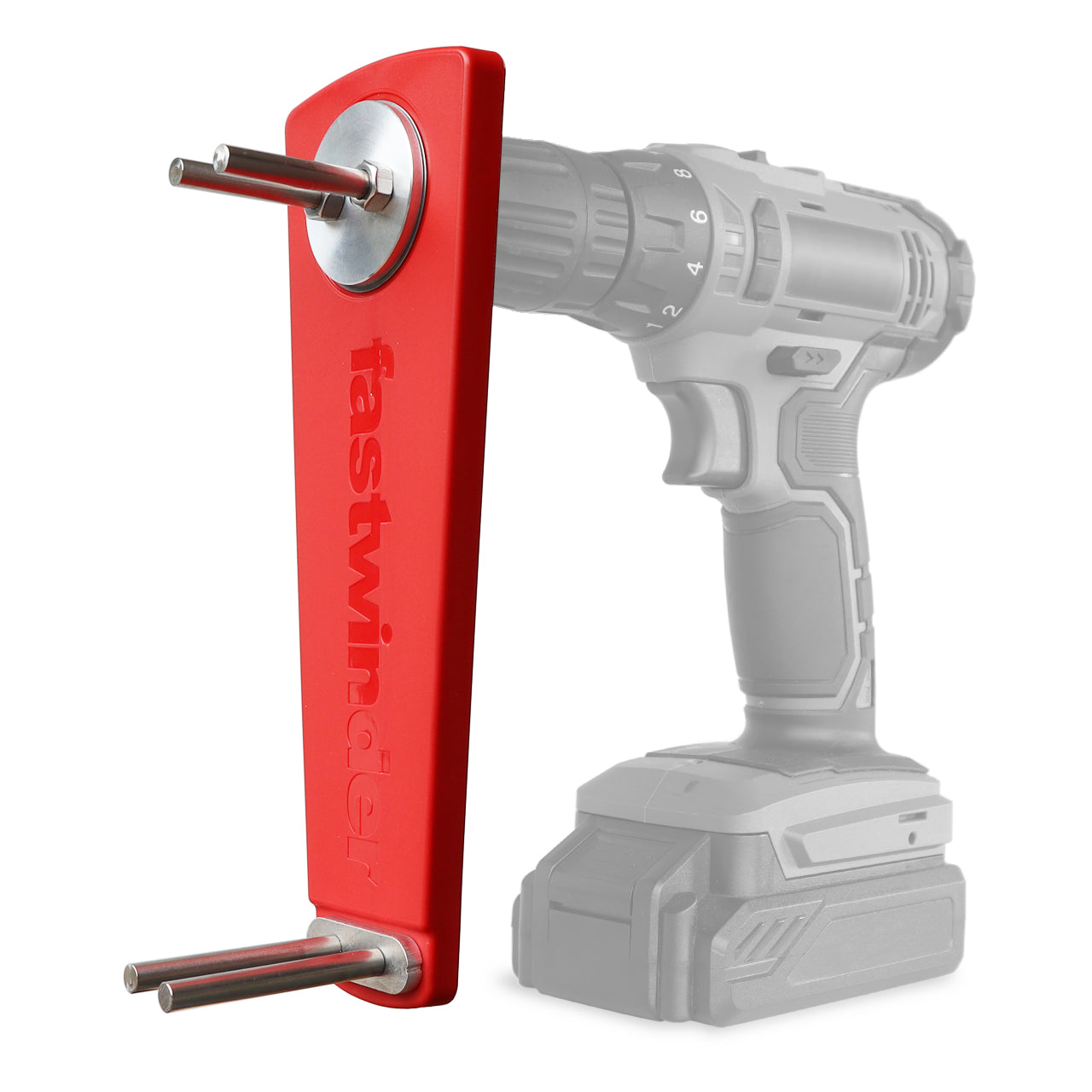

⎯ Fits all medium-sized cordless drills thanks to its Ø10 mm shaft insert.
⎯ Based on the original, protected Dynello® design with over 10 years of industrial testing

● Innovative strap-steer for excellent strap-control:
⎯ The strap-steer provides sturdy control of the webbing, offering a nicely aligned roll of webbing
⎯ Unbreakable guide pins made in stainless steel made for heavy-duty use

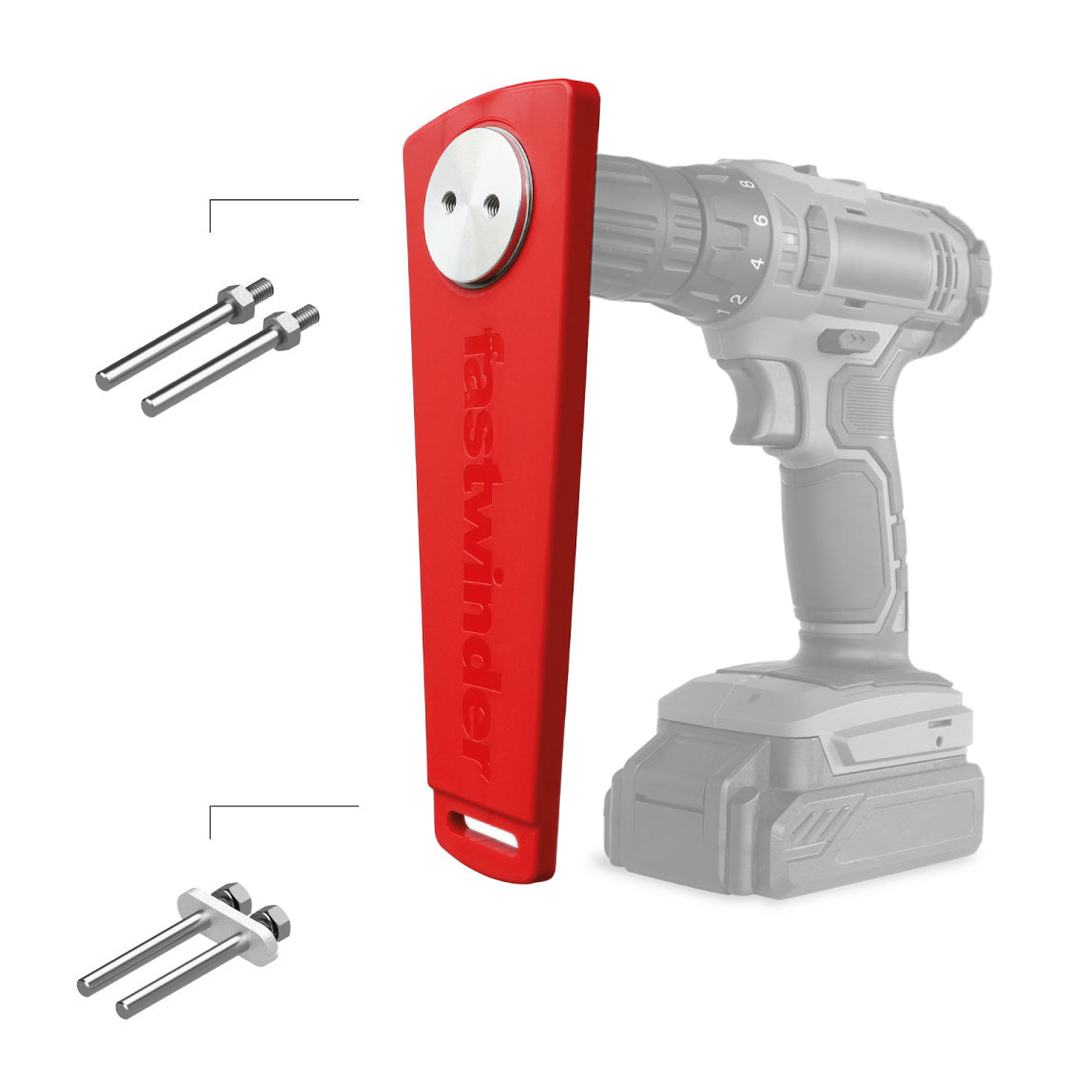

⎯ Guide pins interchangeable with other 75mm/100mm length variants (on request) for wider strap applications

● Dry bearing technology:
⎯ Made with an integrated maintenance-free dry bearing with Teflon™ that results in smooth rewinding
⎯ Impact-resistant polymer material provides excellent fall, crush, and impact resistance
⎯ Maintenance free strap winder with excellent performance in any environment

● Reliable and ergonomic:
⎯ Unbreakable and very strong polymer material reducing fatigue and improving longevity
⎯ Super lightweight tool, only 250 g

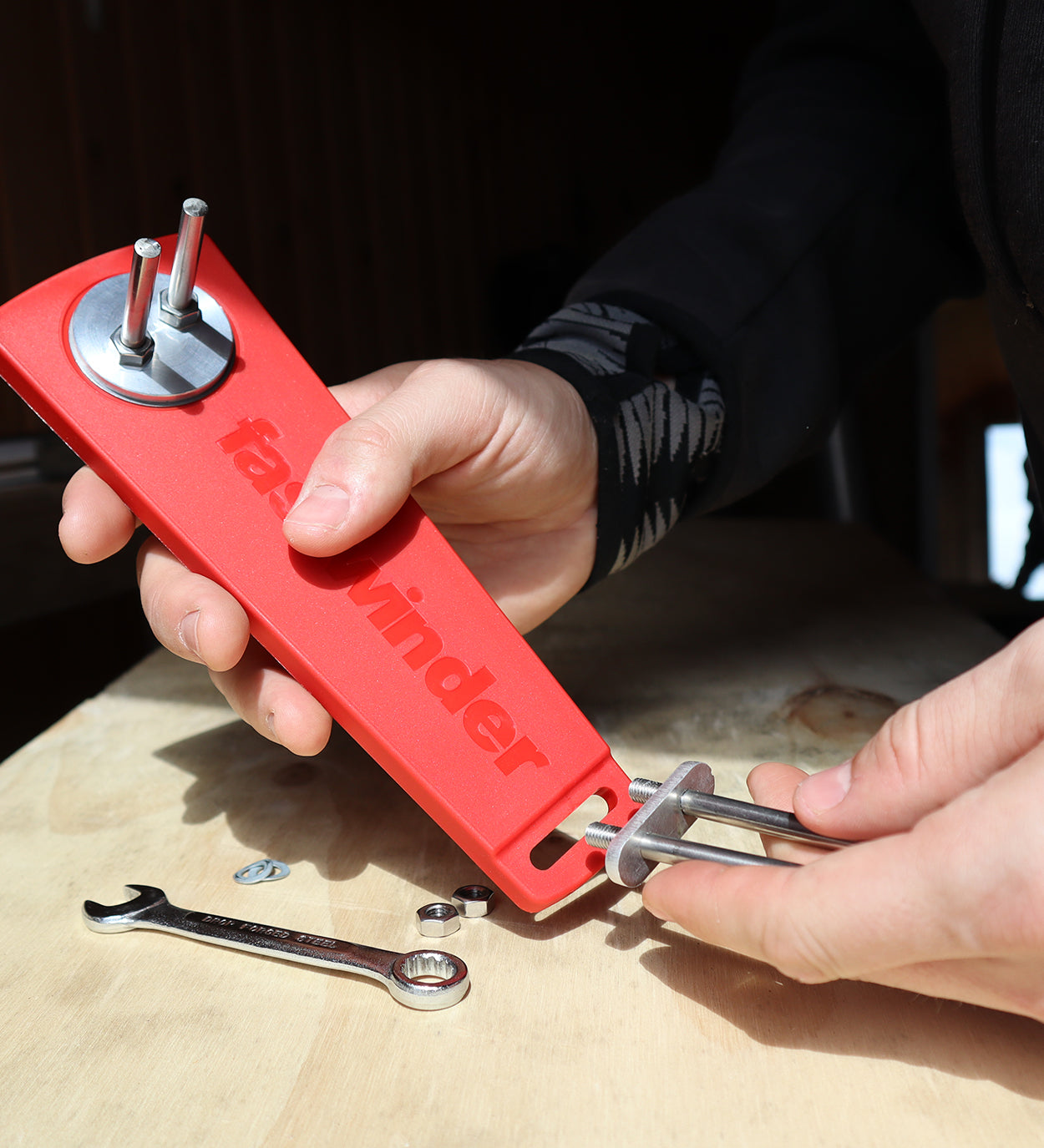

⎯ Easy to assemble using standard hex nuts (metric M6, wrench not included)
⎯ Intuitive use, operable even while wearing gloves

Specifications

● Best for 0 – 50 mm wide straps, max. length 20 m.
● Material: Polymer, aluminium, stainless steel
● Included in pack: Strap winder tool, instruction manual. Delivered as self-assembly. *Cordless drill not included.
● Made in Denmark
● Certification(s): CE
● Compliant with GPSR

References

Technical information

● DatasheetDownload the PDF: rs0302-datasheet_v20112024 0.44 MB

● Instruction manualDownload the PDF: rs0302-instruction-manual_v2 2.31 MB

● Declaration of ConformityDownload the PDF: rs03-ce-declaration_v21042022 0.22 MB
